KTO011 and KTS011 thermostats are high-performance solutions designed for industrial environments. KTO011 controls heaters, while KTS011 is ideal for fans.

These thermostats are widely used in electrical cabinets and other temperature-sensitive applications, ensuring effective protection against condensation and overheating.

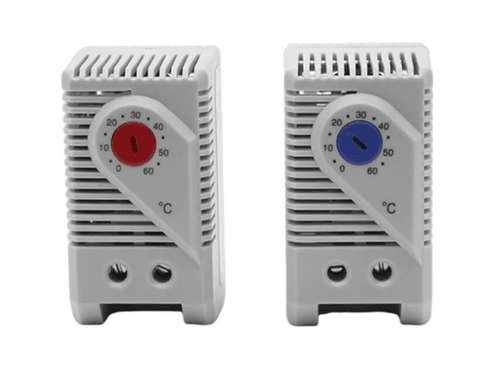

KTO011 (Red) Thermostat (normally closed); contact breaker for regulating heaters.

KTS011 (Blue) Thermostat (normally open); contact maker for regulating of filter fans and heat exchangers or for switching signal devised when temperature limit has been exceeded.

CAPILARY THERMOSTAT
Product Description

1. Temperature range: -36~+36°C

2. Rating voltage: 250V 50Hz

3. Rating current: 6(6)A

4. Contact Resistance: ≤50MΩ

5. Life run for operation: 200000 circle

6. Capillary Length: 2000mm

MECHANICAL HYGROSTAT
Product Description

1. Setting range: 35 to 95% RH

2. Min. switching capacity: 20VAC/DC 100mA

3. Max. switching capacity: 250VAC 5A - DC 20W

4. Contact type: Change-over contact

5. Op./St. temperature: 0 to +60°C/-40 to +60°C

6. Protection type: IP20
